Bidirectional CCD caliper

      The CCD caliper uses a green LED parallel light source, and the CCD adopts high-speed FPGA technology, which has the characteristics of fast measurement speed, stable performance, and long service life. Mainly used for non-destructive online measurement and control of the outer diameter of various wire and cable, fiber optic cable, various pipe and rod products. At the same time, CCD caliper overcomes the weakness of laser caliper that cannot accurately measure fully transparent pipes, and is widely used in online non-contact outer diameter measurement and control of various transparent materials and transparent pipes. CCD and parallel light source technology are more convenient for measuring the thickness and broadband measurement of flat wires and plates.

Features:
1. Response speed, 1000 times/second
2. The data processor, using FPGA technology, can perform high-speed and high-precision operations.
3. Communication interfaces, RS32 and RS485, can be connected to computers PLC， Online detection and recording of paperless recorders, printers, and other devices.
4. Small size, easy to install.
5. The data parameters can set the nominal value and tolerance of the measured object, and control the output parameters;
6. Control output, alarm output, can be connected to alarm indicator light, shutdown switch. Analog output can be used for extruding electrical systems
Feed control and transmission of data with other devices.
7. Non contact measurement, stable performance, long service life, low maintenance rate

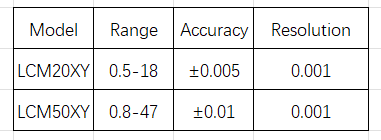

Technical Indicators:
