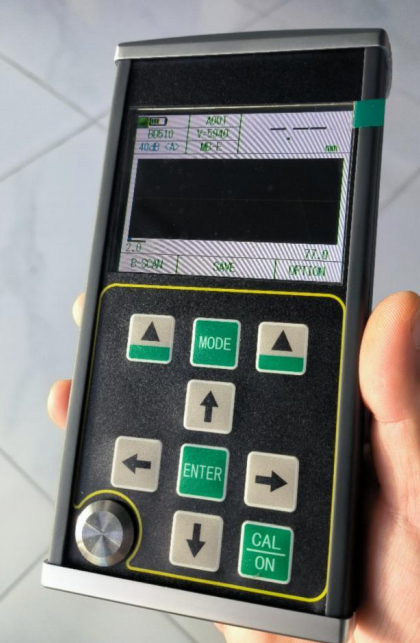

Portable thickness Gauge

    The Portable thickness Gauge is a portable wall thickness measuring instrument specially developed by our company for the pipe industry based on ultrasonic thickness measurement technology. This instrument is almost suitable for all pipes and can accurately measure the wall thickness of pipes. It has the characteristics of fast measurement speed, simple operation, stable performance, accurate measurement, and easy portability. At the same time, it can be connected to a PC to achieve data information management and is an essential instrument in the pipeline industry.

Features
High precision quantification and positioning;
The near-field blind zone is small, meeting the requirements for measuring the thickness of small diameter and thin-walled pipes;
● Automatic calibration: One click automatic calibration, very convenient operation;
500 independent thickness measurement channels (expandable), storing 500 working settings, can be accessed at any time, and there is no need to carry test blocks on site;
● Free storage and playback of 1000 waveforms and data;
The pulse width and intensity of the emission are adjustable;
● Communicate with computers to achieve computer data management and export in Excel format;
The use of PC communication software can upgrade the functionality of the instrument system;
260000 color true color screen with ultra-high brightness display, adjustable brightness, suitable for working environments with strong and weak light;
High performance, safe and environmentally friendly lithium battery power supply, capable of continuous operation for 10 hours.
Real time clock recording: track and store the real-time detection date and time;
● Power off protection, storing data without loss;
Important auxiliary functions:
● Power status indication
● Gate sound and light alarm
Freezing and thawing of the screen
● Clock display
